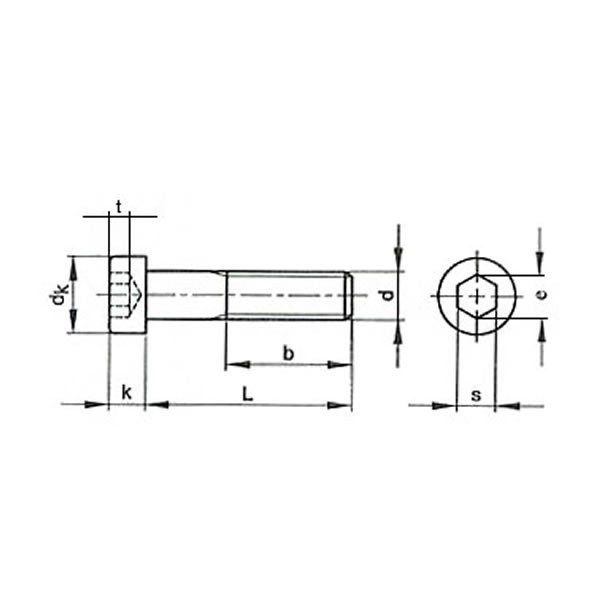

| d thread size | P | dk nom=max | k nom=max | s nom | e min | t nom | b (l≤125) | b (l>125 ≤200) | b (l>200) |
|---|---|---|---|---|---|---|---|---|---|
| M3 | 0.5 | 5.5 | 2 | 2 | 2.3 | 1.5 | 12 | - | - |
| M4 | 0.7 | 7 | 2.8 | 2.5 | 2.87 | 2.3 | 14 | - | - |
| M5 | 0.8 | 8.5 | 3.5 | 3 | 3.44 | 2.7 | 16 | - | - |
| M6 | 1 | 10 | 4 | 4 | 4.58 | 3 | 18 | - | - |
| M8 | 1.25 | 13 | 5 | 5 | 5.72 | 3.8 | 22 | 28 | - |
| M10 | 1.5 | 16 | 6 | 7 | 8.01 | 4.5 | 26 | 32 | - |
| M12 | 1.75 | 18 | 7 | 8 | 9.15 | 5 | 30 | 36 | - |
| M14 | 2 | 21 | 8 | 10 | 11.43 | 5.3 | 34 | 40 | - |
| M16 | 2 | 24 | 9 | 12 | 13.72 | 5.5 | 38 | 44 | 57 |
| M18 | 2.5 | 27 | 10 | 12 | 13.72 | 6.5 | 42 | 48 | 61 |
| M20 | 2.5 | 30 | 11 | 14 | 16 | 7.5 | 46 | 52 | 65 |
| M22 | 2.5 | 33 | 12 | 14 | 16 | 8 | 50 | 56 | 69 |
| M24 | 3 | 36 | 13 | 17 | 19.44 | 8 | 54 | 60 | 73 |
DIN 7984 SOCKET CAP SCREW
Product Overview：DIN7984
Product Sizes：M3 to M24
Product Lengths：5 to 160
Product Materials：Stainless Steeal (A2&A4) & Steel 8.8 (Self Colour & Zinc)
